Vertical Briquetting System
Briquetting Press Machines are suitable for pressing metal scraps such as iron scraps, cast iron scraps, copper scraps, aluminium scraps, etc., with a length < 80mm into round high-density bales, which are convenient for recycling and smelting.
Features
- Hydraulic drive, high working efficiency, stable and vibration-free, safe and reliable
- Stable movement, safe and reliable. Simple equipment foundation
- PLC control, manual or automatic operation
- Adopt our company's unique composite cylinder patent technology
- Automatic discharge system, high production efficiency, and easy operation

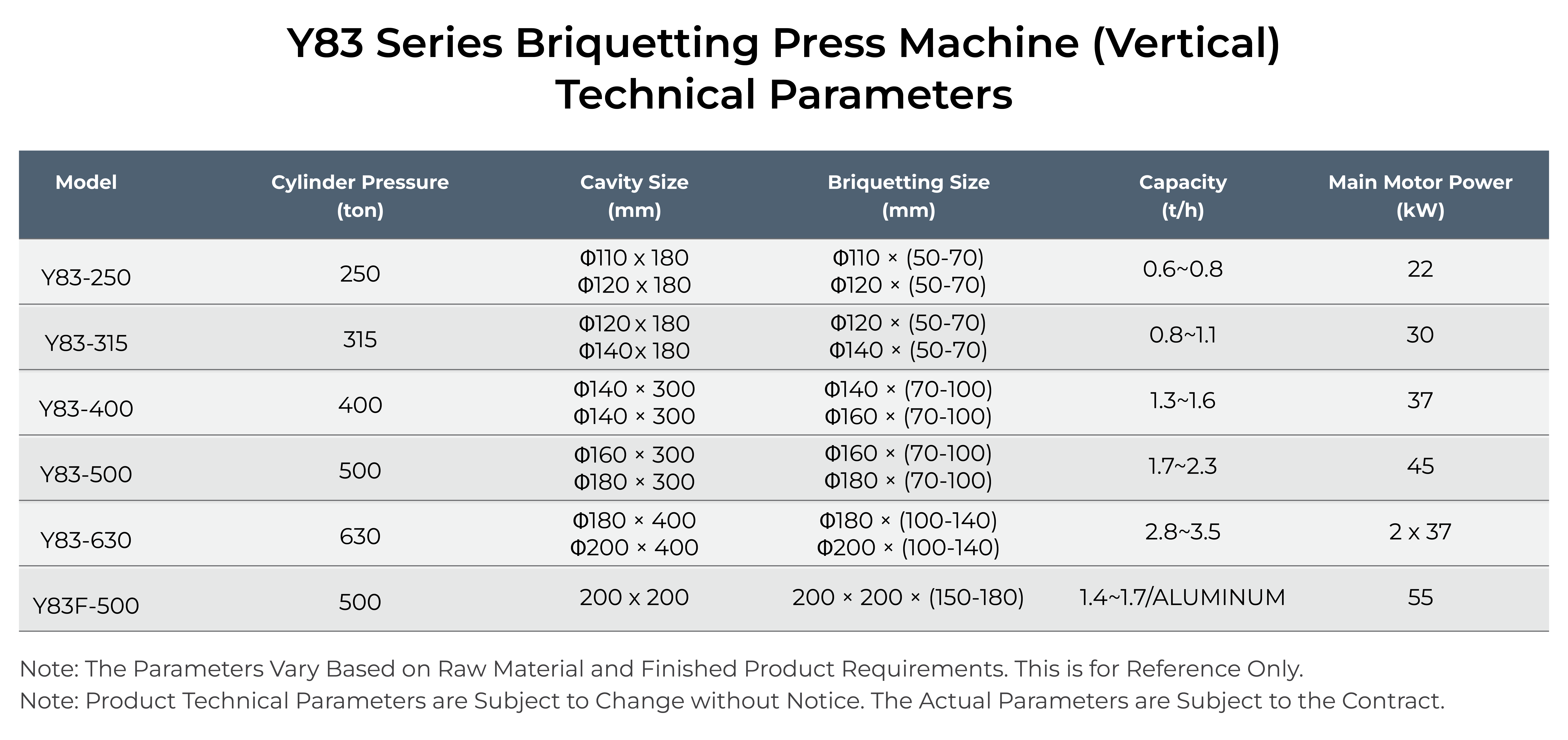

Briquetting Press Machine (Vertical) Technical Parameters
| Model | Cylinder Pressure (ton) | Cavity Size (mm) | Briquetting Size (mm) | Capacity (t/h) | Main Motor Power (kW) |
|---|---|---|---|---|---|
| Y83-250 | 250 | ?110 x 180 ?120 x 180 | ?110 × (50-70) ?120 × (50-70) | 0.6~0.8 | 22 |
| Y83-315 | 315 | ?120 x 180 ?140x 180 | ?120 × (50-70) ?140 × (50-70) | 0.8~1.1 | 30 |
| Y83-400 | 400 | ?140 × 300 ?140 × 300 | ?140 × (70-100) ?160 × (70-100) | 1.3~1.6 | 37 |
| Y83-500 | 500 | ?160 × 300 ?180 × 300 | ?160 × (70-100) ?180 × (70-100) | 1.7~2.3 | 45 |
| Y83-630 | 630 | ?180 × 400 ?200 × 400 | ?180 × (100-140) ?200 × (100-140) | 2.8~3.5 | 2 x 37 |
| Y83F-500 | 500 | 200 x 200 | 200 × 200 × (150-180) | 1.4~1.7/ALUMINUM | 55 |
* Specifications are indicative and subject to change based on requirements and technical advancements.
Pressing metal scraps such as iron, cast iron, copper and aluminium chips and turnings into high density briquettes suitable for recycling and remelting.
The equipment foundation is simple, which is one of the main practical advantages of the vertical layout. Movement is stable, safe and reliable during operation.
Yes. PLC control supports both manual and fully automatic operation, with an automatic discharge system for high production efficiency and easy handling.
Dry to moderately oily chips and turnings of consistent size. Very long stringy turnings are better broken down first, since uniform feed produces more consistent briquette density.
A vertical machine occupies less floor area and needs a simpler foundation, which makes it a practical choice for machine shops fitting a briquetter into an existing plant.
