Pre-shredder
Scrap Metal Pre-shredders are suitable for the pre-shredding treatment of car shells and metal bales. The bales are torn into small pieces or strips, and then transported to the scrap steel shredder line for final shredding.
Double hydraulic motor drive, low noise, adjustable working force, simple and safe operation
Heavy-duty steel structure for robustness
Mechanical, electrical, and hydraulic integrated control is easy to learn, intuitive, and convenient to operate.
Remote operations and Maintenance system
Operator Free Operations
Features
- Double hydraulic motor drive, low noise, adjustable working force, simple and safe operation
- Heavy-duty steel structure for robustness
- Mechanical, electrical, and hydraulic integrated control is easy to learn, intuitive, and convenient to operate
- Remote operations and Maintenance system
- Operator Free Operations

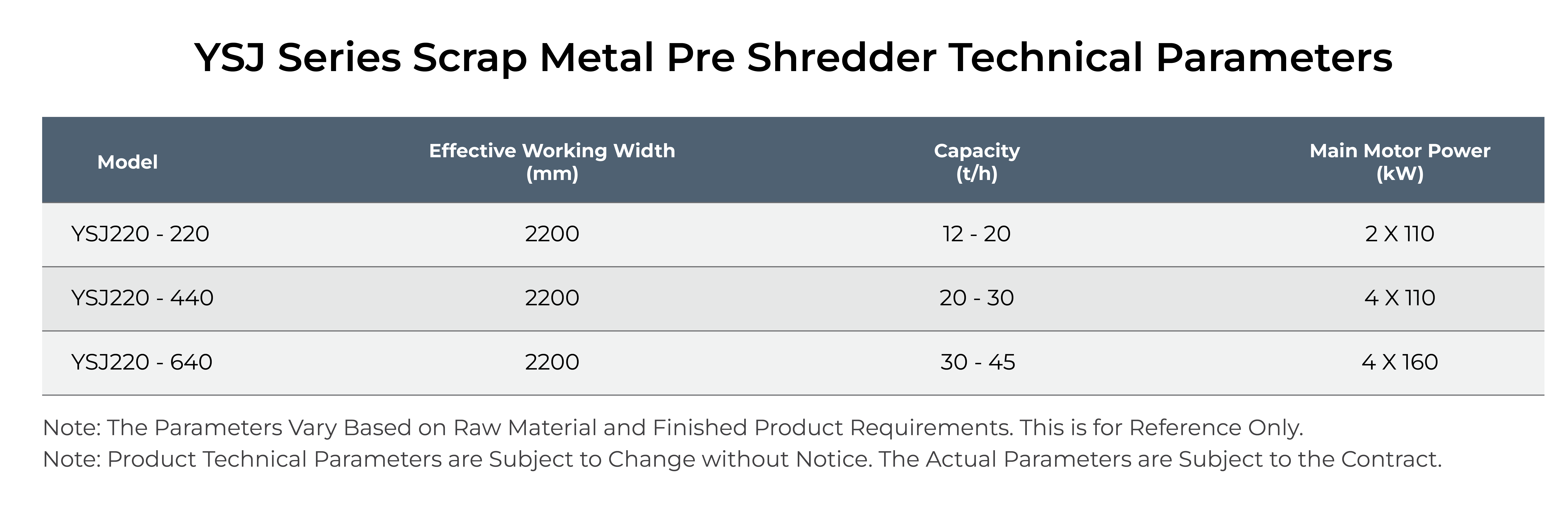

Scrap Metal Pre Shredder Technical Specifications
| Model | Effective Working Width (mm) | Capacity (t/h) | Main Motor Power (kW) |
|---|---|---|---|
| YSJ220 - 220 | 2200 | 12 - 20 | 2 X 110 |
| YSJ220 - 440 | 2200 | 20 - 30 | 4 X 110 |
| YSJ220 - 640 | 2200 | 30 - 45 | 4 X 160 |
* Specifications are indicative and subject to change based on requirements and technical advancements.
It handles the pre-shredding of car shells and metal bales, tearing them into small pieces or strips before they are conveyed to the main shredder line for final shredding.
Feeding whole shells and dense bales directly into a hammer mill causes jams, shock loading and higher wear. Breaking the material down first keeps the main line running at a steadier rate and protects the hammers.
A double hydraulic motor drive with adjustable working force. It runs at low noise, is simple and safe to operate, and the heavy duty steel structure is built for the shock loads this duty produces.
Yes. Mechanical, electrical and hydraulic integrated control makes it intuitive to run, and the remote operation and maintenance system supports operator free running.
It can, where the requirement is size reduction of bales and shells rather than fully liberated shredded scrap. Most installations use it feeding a shredder line, since that is where the combination pays back fastest.
