Tiger Head Shear

A tiger head shear is a hydraulic cold cutting machine for metal profiles and structures of varying cross section. It processes incoming material into qualified charge for melting, and it sits between the compact alligator shear and the large gantry shear in both size and duty.

What it cuts

Cold cutting of metal profiles and metal structures with various cross sectional shapes. The jaw arrangement handles irregular sections that would be difficult to position in a press box, which makes it well suited to yards receiving structural steel, sections and mixed profile scrap rather than bulk sheet.

Control and safety

The machine uses mechanical, electrical and hydraulic integrated control and can be started and stopped at any position in the stroke. That is what makes overload protection straightforward to realise: if the material resists, the machine can be held or reversed rather than driven through. PLC control gives reliable, repeatable performance cycle after cycle.

Cutting modes

Single and continuous cutting can be selected as required. Single cutting suits one off pieces and awkward sections where the operator positions each cut. Continuous cutting suits repetitive production work on long material, where the machine cycles automatically as material is fed. Having both on one machine means the same asset covers occasional heavy work and steady production runs.

Features

• Mechanical, electrical and hydraulic integrated control
• Start and stop at any position for easy overload protection
• Single and continuous cutting selectable as required
• PLC control with reliable, repeatable performance
• Suited to profiles and structures of varying cross section

Who uses it

• Steel industry and non ferrous metals industry
• Scrap processing and distribution centres
• Renewable resource processing enterprises
• Scrap car dismantling units

Choosing between shear types

A tiger head shear and an alligator shear both do cold profile cutting, and the right answer depends on your material rather than on a general ranking. Larger cross sections and higher continuous duty point towards a tiger head shear. Smaller volumes, tighter budgets and a need to move the machine point towards an alligator shear. Where the incoming material is heavy melting scrap rather than profiles, a straight bed or gantry shear is the correct machine instead of either.

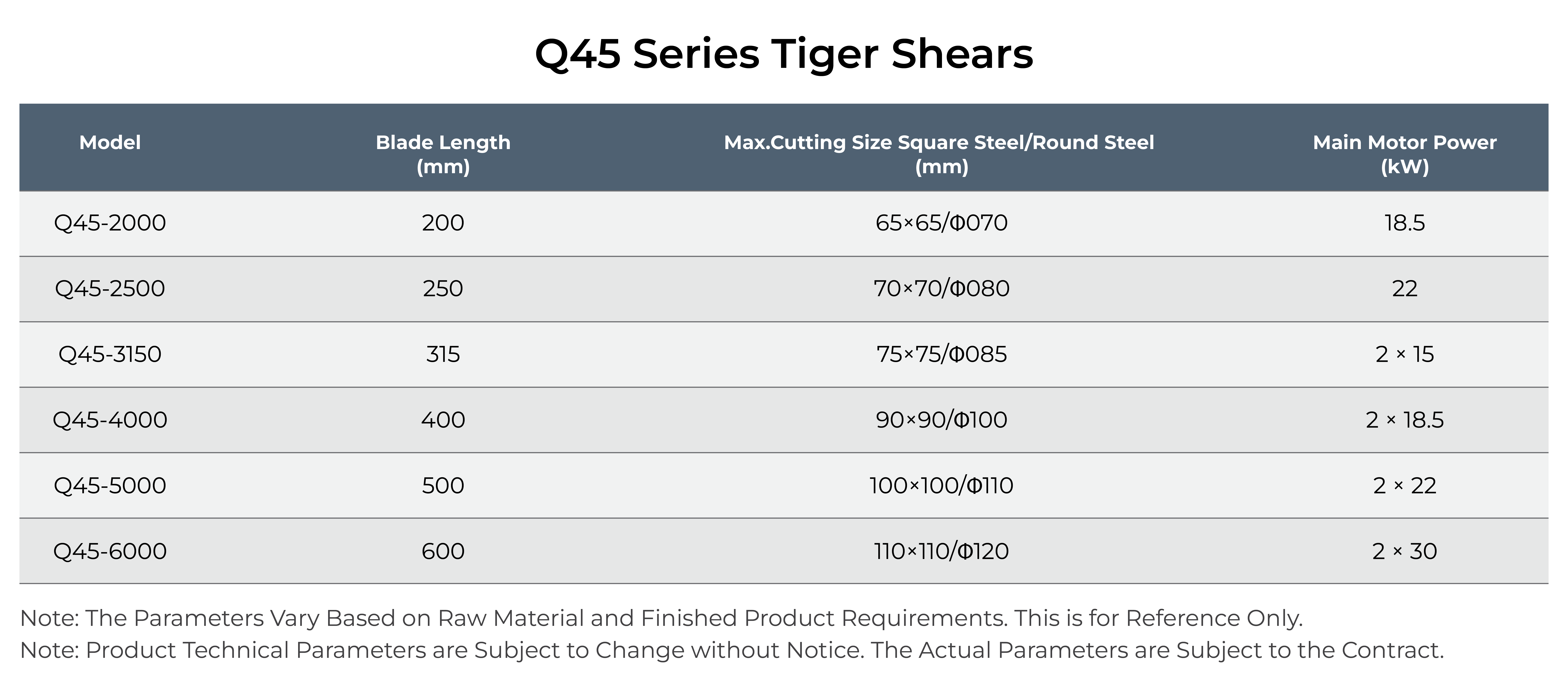

Specifying a machine

We size the machine against your largest cross section, your typical material mix, the charge length your furnace or buyer requires, and how many hours a day the machine will actually run. That last figure is the one most often understated, and it is what determines whether the hydraulic and cooling specification will hold up.
